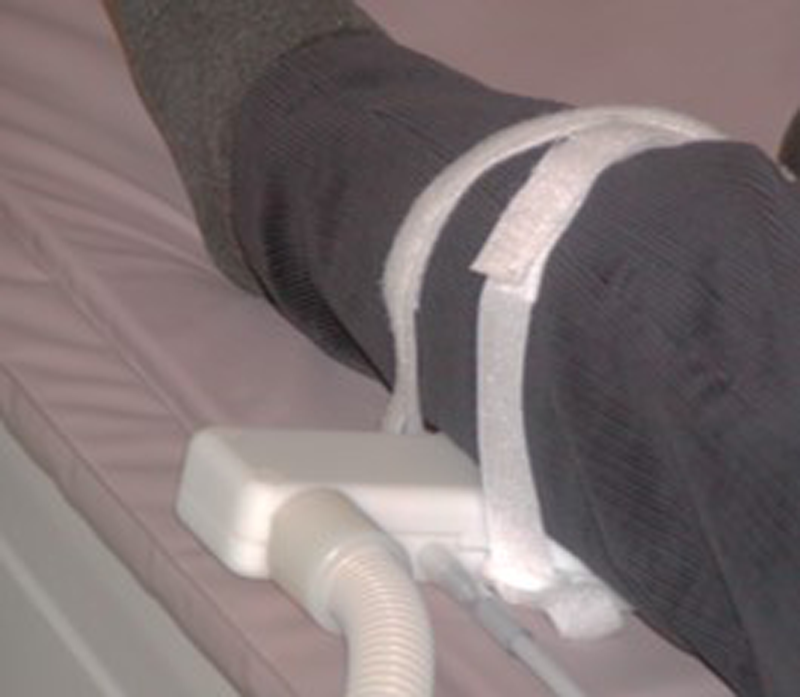

Example applications: 31P calf, 13C cardiac MRI/MRS.
Fitted with an integrated reference sample for chemical reference, calibration and quantification.
- Available in either plastic or flexible foam housing.
- X-nuclei: 31P, 19F, 23Na, 13C, 3He, 7Li, 129Xe.
- Compatible with 1H body coil imaging.
- Available for 1.5 T, 3.0 T and 7.0 T systems.

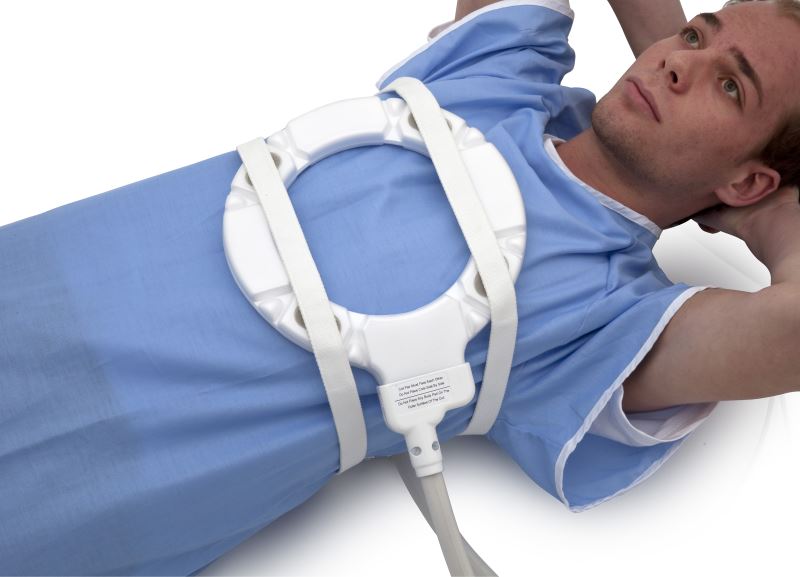

Example application: 23Na or 31P chest and abdomen MRI/MRS.
- Available in either plastic or flexible foam housing.
- X-nuclei: 31P, 19F, 23Na, 13C, 3He, 7Li, 129Xe.
- Compatible with 1H body coil imaging.
- Available for 1.5 T, 3.0 T and 7.0 T systems.

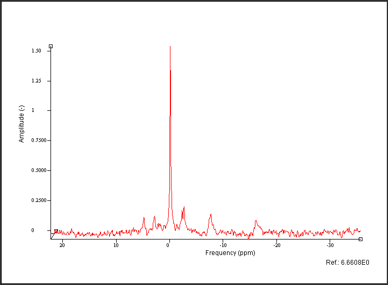

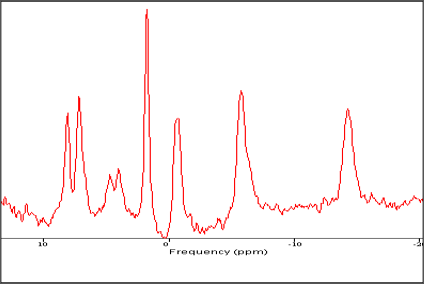

31P data from 6 cm loop coil on calf (left) and 10 cm loop coil on heart (right).
- Available for 3.0 T MR systems for all manufacturers:
- Philips (Achieva, Ingenia), Siemens (Trio, Verio, Skyra, Prisma, Vida) and GE (HDx, MR750, Premier).
- All of our RF coils can be provided with bespoke multinuclear phantoms. These provide:
- Tissue equivalent body loading, reference sample containers, and are designed for use in QA, coil calibration and spectral optimisation.
- Coil files are available for all the latest software releases.
